TUGS, LAUNCHES, WORKBOATS AND BARGES

ARANA (Tug)

  • SPECIFICATIONS
  • DIMENSIONS / LOADING
  • MEASURED LENGTH 14.80m MEASURED BREADTH 6.5m
  • MOULDED DEPTH 3.0m FUEL CAPACITY 22m3
  • TONNAGE
  • GROSS 79T DESIGNED BOLLARD PULL 10.38T
  • REGISTRATIONS
  • SURVEY 2c VESSEL ID: 31366QC
  • EQUIPMENT
  • Twin Screw Fixed Nozzles -designed speed 10 knots.
  • NAVIGATIONAL AIDS:
    VHF Radios, HF Radios, UHF Radios, GPS, Compass.
    MACHINERY & EQUIPMENT:
    Main Engines (2 x Yanmar 6HA2M - WDT)
    Gensets 2 x Yanmar

Babinda (Tug)

  • SPECIFICATIONS
  • DIMENSIONS / LOADING
  • MEASURED LENGTH 20.96m MEASURED BREADTH 6.43m
  • MOULDED DEPTH 3.41m FUEL CAPACITY 20T
  • TONNAGE
  • GROSS 111.30 DESIGNED BOLLARD PULL 14T
  • REGISTRATIONS
  • SURVEY 2B VESSEL ID: 3019QB
  • EQUIPMENT
  • Twin Screw Steering Nozzles - Designed Speed 10 knots
  • NAVIGATIONAL AIDS:
    Radar, VHF Radios x 2, HF Radios, UHF Radios, GPS
    MACHINERY & EQUIPMENT:
    Main Engines (2 x GM Detroit 12V71)
    Gearbox type (2 x Twin Disk MG-516)
    Perkins Genset - Volvo TAM70 Fire Pump

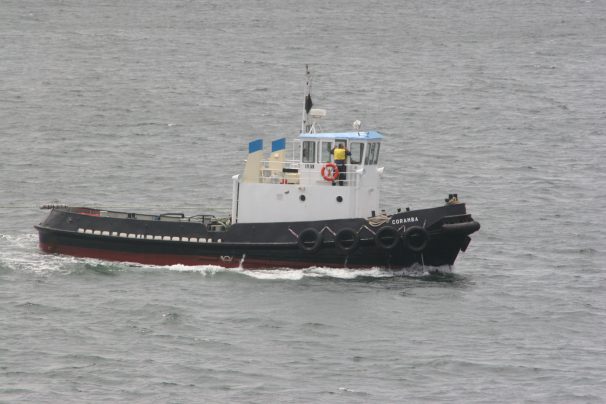

Coramba (Tug)

  • SPECIFICATIONS
  • DIMENSIONS / LOADING
  • MEASURED LENGTH 18.10m MEASURED BREADTH 5.36m
  • MOULDED DEPTH 2.82m FUEL CAPACITY 8000
  • TONNAGE
  • GROSS 59.61T DESIGNED BOLLARD PULL 8T
  • REGISTRATIONS
  • SURVEY 2C VESSEL ID: 17959
  • EQUIPMENT
  • Single Screw Steering Nozzle
  • NAVIGATIONAL AIDS:
    Radar, VHF Radios, HF Radios, UHF Radios, GPS
    MACHINERY & EQUIPMENT:
    1 x GM Detroit Diesel 16V71.

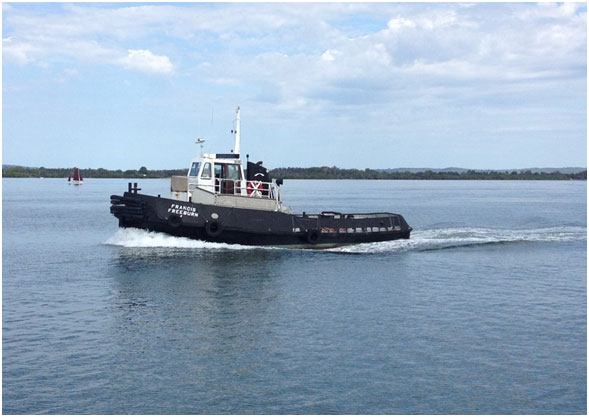

Francis Freeburn (Tug)

  • SPECIFICATIONS
  • DIMENSIONS / LOADING
  • MEASURED LENGTH 15.25m MEASURED BREADTH 4.88m
  • MOULDED DEPTH 2.44m FUEL CAPACITY 6.7T
  • TONNAGE
  • GROSS DESIGNED BOLLARD PULL 6T
  • REGISTRATIONS
  • SURVEY 2C VESSEL ID: 18080
  • EQUIPMENT
  • Single Screw Steering Nozzle
  • NAVIGATIONAL AIDS:
    VHF Radios, HF Radios, UHF Radios, GPS, Compass.
    MACHINERY & EQUIPMENT:
    Main Engines (Detroit 12V-71)
    Clutch/Gearbox Type: Twin Disc
    Auxillary Fire pump

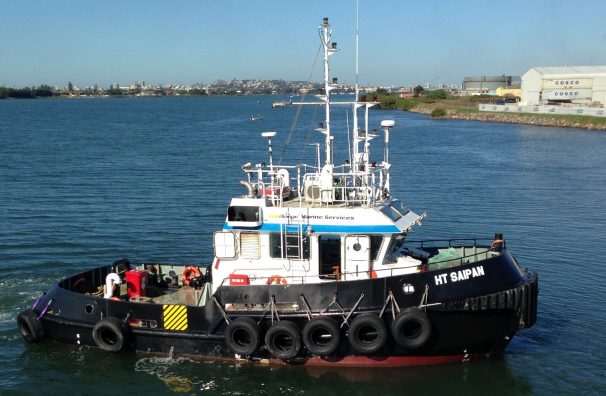

HT SAIPAN (Tug)

  • SPECIFICATIONS
  • DIMENSIONS / LOADING
  • MEASURED LENGTH 16m MEASURED BREADTH 6m
  • MOULDED DEPTH 2.90m FUEL CAPACITY 17.39MT
  • TONNAGE
  • GROSS 70T DESIGNED BOLLARD PULL 14T
  • REGISTRATIONS
  • SURVEY 2C VESSEL ID: 31173QC
  • EQUIPMENT
  • Twin Screw Fixed Nozzles - Designed Speed 10 knots
  • NAVIGATIONAL AIDS:
    VHF Radios, HF Radios, UHF Radios, GPS, Compass.
    MACHINERY & EQUIPMENT:
    Main Engines (2 x Volvo D12-500 Diesel)
    Gearbox type: Twin Disk MG-5114DC
    Tow Hook: 1 x Unit 15T
    Anchor Chain: 1 x length 12.5mm dia x 100m
    Gensets – Perkins 422T

MT MORPETH (Tug)

  • SPECIFICATIONS
  • DIMENSIONS / LOADING
  • MEASURED LENGTH 15.83m MEASURED BREADTH 5.31m
  • MOULDED DEPTH 2.52m FUEL CAPACITY 2 x 3.61T
  • TONNAGE
  • GROSS 70T DESIGNED BOLLARD PULL 7T
  • REGISTRATIONS
  • SURVEY 2C/1E VESSEL ID: 17881
  • EQUIPMENT
  • Twin Screw Fixed Nozzles - Designed Speed 10 knots
  • NAVIGATIONAL AIDS:
    1 x Icom ICM204 VHF Radio
    MACHINERY & EQUIPMENT:
    Main Engines (2 x Cummins NT855M)
    Gearbox type (2 x Capital HYH)
    Propellors 4 Blade

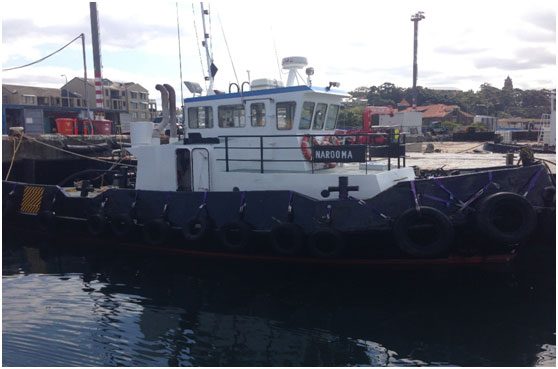

NAROOMA (Tug)

  • SPECIFICATIONS
  • DIMENSIONS / LOADING
  • MEASURED LENGTH 16.73m MEASURED BREADTH 5.41m
  • MOULDED DEPTH 1.90m FUEL CAPACITY 8T
  • TONNAGE
  • GROSS 36T DESIGNED BOLLARD PULL 12T
  • REGISTRATIONS
  • SURVEY 2C VESSEL ID: 24415
  • EQUIPMENT
  • Twin Screw Fixed Nozzles - Designed Speed 10 knots
  • NAVIGATIONAL AIDS:
    Radar (JMA2143 JRC), VHF Radios (Sailor RT144), HF Radios, UHF Radios, GPS (Samsung)
    MACHINERY & EQUIPMENT:
    Main Engines (2 x 410 Detroit Diesel) Model No: 12V 71ti, Continous Rating: 394KW.
    Auxiliary Engines: Izuzu, Model FC31, Continuous Rating 26KVA, AFT Towing Winch 10T EPMS.

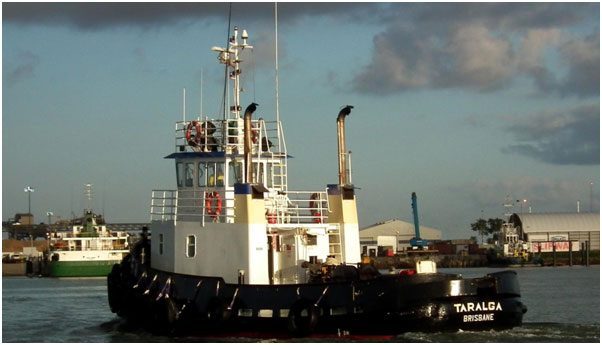

Taralga (Tug)

  • SPECIFICATIONS
  • DIMENSIONS / LOADING
  • MEASURED LENGTH 14.80m MEASURED BREADTH 6.5m
  • MOULDED DEPTH 3m FUEL CAPACITY 22m3
  • TONNAGE
  • GROSS 79T DESIGNED BOLLARD PULL 16T
  • REGISTRATIONS
  • SURVEY 2C VESSEL ID: 22987
  • EQUIPMENT
  • Twin Screw Fixed Nozzles - Designed Speed 10 knots
  • NAVIGATIONAL AIDS:
    VHF Radios, HF Radios, UHF Radios, GPS, Compass.
    MACHINERY & EQUIPMENT:
    Main engines (2 x Cummins kta19) and Perkins genset

WOOREE (Tug)

  • SPECIFICATIONS
  • DIMENSIONS / LOADING
  • MEASURED LENGTH 29M MEASURED BREADTH 9.7m
  • MOULDED DEPTH 4.4m FUEL CAPACITY 107m3
  • TONNAGE
  • GROSS 266T DESIGNED BOLLARD PULL 41T
  • REGISTRATIONS
  • SURVEY 2B VESSEL ID: 29184
  • EQUIPMENT
  • Twin Screw Independent Steering Nozzles
  • NAVIGATIONAL AIDS:
    VHF Radios, HF Radios, UHF Radios, GPS, Compass, 1 x 3G Radar, 1 x 72nm Radar, Simrad Sonar Plotter & AIS.
    MACHINERY & EQUIPMENT:
    80T Brake Winch with 650m of 44m Towing Wire, Tugger Winch, 2 Line Winches, 3 Towing Pins, Shark Jaw, 5T Hiab, Rescue Tender.

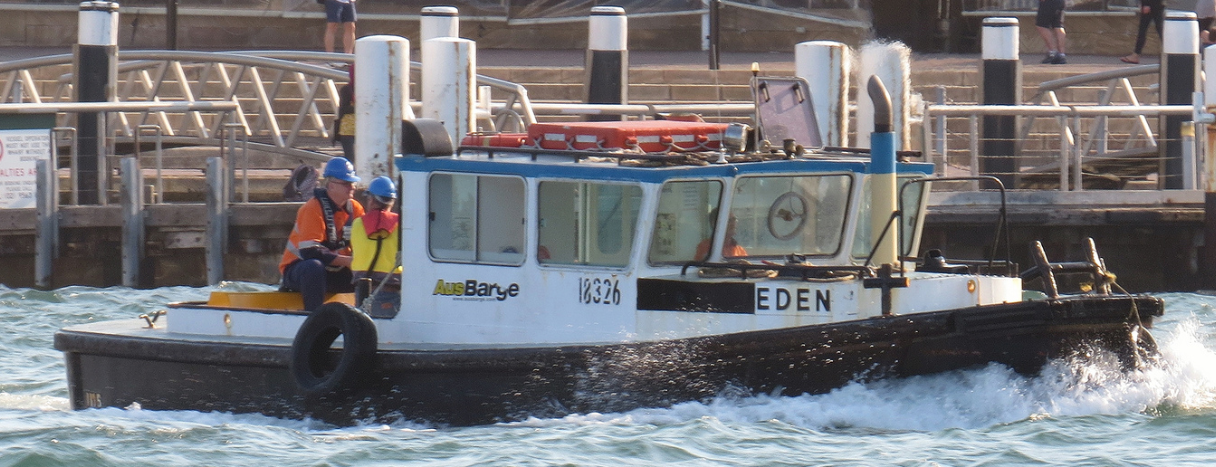

EDEN (Launch)

  • SPECIFICATIONS
  • DIMENSIONS / LOADING
  • MEASURED LENGTH 9.9M MEASURED BREADTH 3.80M
  • MOULDED DEPTH 1.34M FUEL CAPACITY 560L
  • TONNAGE
  • GROSS 12.93T DESIGNED BOLLARD PULL 1.5T
  • REGISTRATIONS
  • SURVEY 2E (16 PAX) VESSEL ID:
  • EQUIPMENT
  • Single Screw with Rudder – designed speed 10 knots.
  • NAVIGATIONAL AIDS:
    Radar, VHF Radios, HF Radios, UHF Radios, GPS
    MACHINERY & EQUIPMENT:
    1 x 4/71 GM Detroit
    Clutch/Gearbox Type: Twin Disc 506
    Propellers: 760mm Manganese Bronze

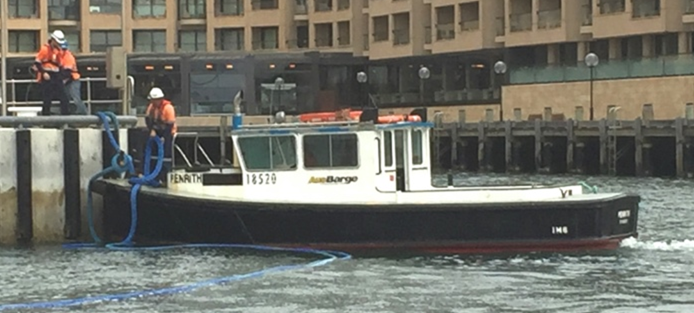

PENRITH (Launch)

  • SPECIFICATIONS
  • DIMENSIONS / LOADING
  • MEASURED LENGTH 9.9M MEASURED BREADTH 3.80M
  • MOULDED DEPTH 1.34M FUEL CAPACITY 560L
  • TONNAGE
  • GROSS 12.93T DESIGNED BOLLARD PULL 1.5T
  • REGISTRATIONS
  • SURVEY 2E (16 PAX) VESSEL ID:
  • EQUIPMENT
  • Single Screw with Rudder – designed speed 10 knots.
  • NAVIGATIONAL AIDS:
    Radar, VHF Radios, HF Radios, UHF Radios, GPS
    MACHINERY & EQUIPMENT:
    1 x 4/71 GM Detroit
    Clutch/Gearbox Type: Twin Disc 506
    Propellers: 760mm Manganese Bronze

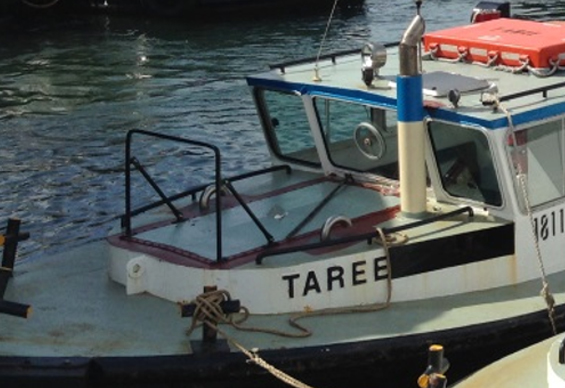

TAREE (Launch)

  • SPECIFICATIONS
  • DIMENSIONS / LOADING
  • MEASURED LENGTH 9.9M MEASURED BREADTH 3.80M
  • MOULDED DEPTH 1.34M FUEL CAPACITY 560L
  • TONNAGE
  • GROSS 12.93T DESIGNED BOLLARD PULL 1.5T
  • REGISTRATIONS
  • SURVEY 2E (16 PAX) VESSEL ID:
  • EQUIPMENT
  • Single Screw with Rudder – designed speed 10 knots.
  • NAVIGATIONAL AIDS:
    Radar, VHF Radios, HF Radios, UHF Radios, GPS
    MACHINERY & EQUIPMENT:
    1 x 4/71 GM Detroit
    Clutch/Gearbox Type: Twin Disc 506
    Propellers: 760mm Manganese Bronze

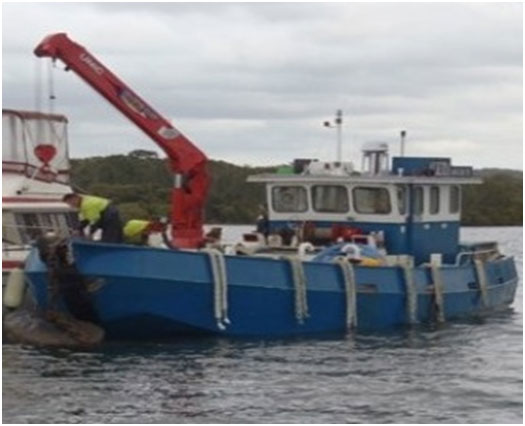

ALKIRA (Workboat)

  • SPECIFICATIONS
  • DIMENSIONS / LOADING
  • MEASURED LENGTH 13m MEASURED BREADTH 5m
  • MOULDED DEPTH FUEL CAPACITY 3000L
  • TONNAGE
  • GROSS 1.3 DESIGNED BOLLARD PULL
  • REGISTRATIONS
  • SURVEY 2C/2D VESSEL ID: 18748
  • EQUIPMENT
  • NAVIGATIONAL AIDS:
    VHF Radios, HF Radios, UHF Radios, GPS, Compass.
    MACHINERY & EQUIPMENT:
    Year Built: 1985
    Main Engines (John Deer 225hp) UNIC UBA 344 Deck Crane with 3T capacity, 10m Reach, Deck Winch 6t Line Pull with Deck Roller on the Bow. Salvage Pump Yanmar 440AE 50mm suction/discharge 500 litres per minute.

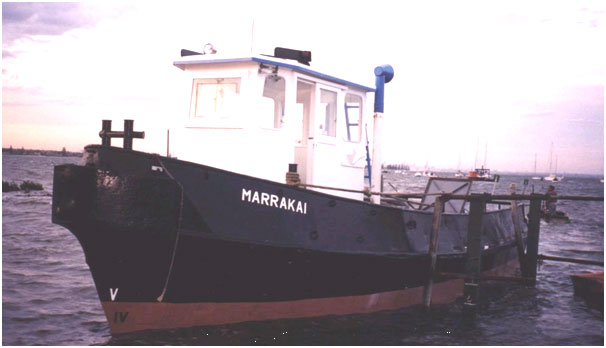

Marrakai (Workboat)

  • SPECIFICATIONS
  • DIMENSIONS / LOADING
  • MEASURED LENGTH 12.4m MEASURED BREADTH 4.27m
  • MOULDED DEPTH 2.25m FUEL CAPACITY
  • TONNAGE
  • GROSS 23.46T DESIGNED BOLLARD PULL 2.5T
  • REGISTRATIONS
  • SURVEY 2D VESSEL ID: 17480
  • EQUIPMENT
  • Single Screw Fixed Nozzles
  • NAVIGATIONAL AIDS:
    Radar, VHF Radios, HF Radios, UHF Radios, GPS
    MACHINERY & EQUIPMENT:
    Main Engines (GM Detroit Diesel 174 @ 1800 RPM)

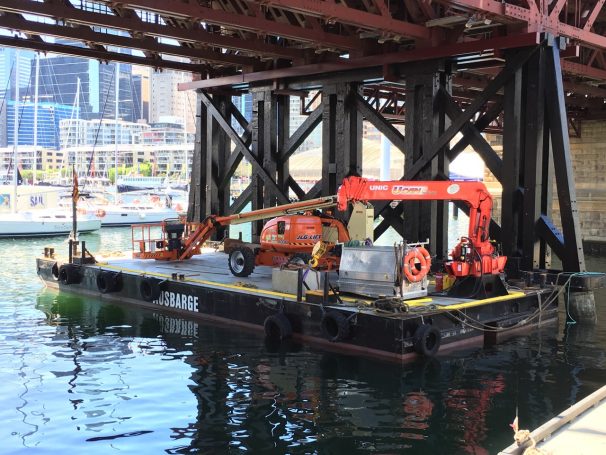

CB1 Barge

  • SPECIFICATIONS
  • DIMENSIONS / LOADING
  • MEASURED LENGTH 16.20m MEASURED BREADTH 7.00m
  • MOULDED DEPTH 1.50m FUEL CAPACITY
  • TONNAGE
  • GROSS 60T DESIGNED BOLLARD PULL N/A
  • REGISTRATIONS
  • SURVEY 2E VESSEL ID: 24126
  • EQUIPMENT
  • 8 x sets of Double Bollards, 2 x 406mm Spud Keepers and spuds ranging in length from 5 to 14 metres, Unic 546 4 tonne SWL Crane
  • NAVIGATIONAL AIDS:
    MACHINERY & EQUIPMENT:
    Draft: 300mm
    Draft Max: 1000mm
    Crane Capabilities: 4050kg @ 0.73 – 2.9m, 3000kg @ 4m, 2000kg @ 5.3m, 1000kg @ 8.5m, 500kg @ 13.2m, 250kg @ 15.5m.

CB2 Barge

  • SPECIFICATIONS
  • DIMENSIONS / LOADING
  • MEASURED LENGTH 20.5m MEASURED BREADTH 9.75m
  • MOULDED DEPTH 2.38m FUEL CAPACITY 340mm
  • TONNAGE
  • GROSS DESIGNED BOLLARD PULL N/A
  • REGISTRATIONS
  • SURVEY 2E VESSEL ID: 23255QE, 23255QB
  • EQUIPMENT
  • 8 x sets of Double Bollards, 2 x Single Bollards, Pusher Pad, 2 x Spud Kepers
  • NAVIGATIONAL AIDS:
    MACHINERY & EQUIPMENT:

COROWA (Barge)

  • SPECIFICATIONS
  • DIMENSIONS / LOADING
  • MEASURED LENGTH 21.350 MEASURED BREADTH 7.920m
  • MOULDED DEPTH 1.65m FUEL CAPACITY
  • TONNAGE
  • GROSS   DESIGNED BOLLARD PULL
  • REGISTRATIONS
  • SURVEY   VESSEL ID: 2989QD
  • EQUIPMENT
  • 2D – 110T Deck Cargo. 2C – Sea transfer voyage in light conditions only.
  • NAVIGATIONAL AIDS:
    MACHINERY & EQUIPMENT:
    Draft (max): 1.025m
    Displacement (max): 167.87t
    Deck Loading: 5T/PM

INTAN 1806 (Barge)

  • SPECIFICATIONS
  • DIMENSIONS / LOADING
  • MEASURED LENGTH 54.86m MEASURED BREADTH 18.29m
  • MOULDED DEPTH 3.05m FUEL CAPACITY
  • TONNAGE
  • GROSS 915t (net 275t) DESIGNED BOLLARD PULL
  • REGISTRATIONS
  • SURVEY VESSEL ID:
  • EQUIPMENT
  • NAVIGATIONAL AIDS:
    MACHINERY & EQUIPMENT:
    Deck Loading: 10t/m2
    Registrations: Class Society - ABS, Number - 114058, AMSA Number - 860954, Certificate of Operation - 30967
    4 point powered mooring system
    3 x spud boxes with spuds available
